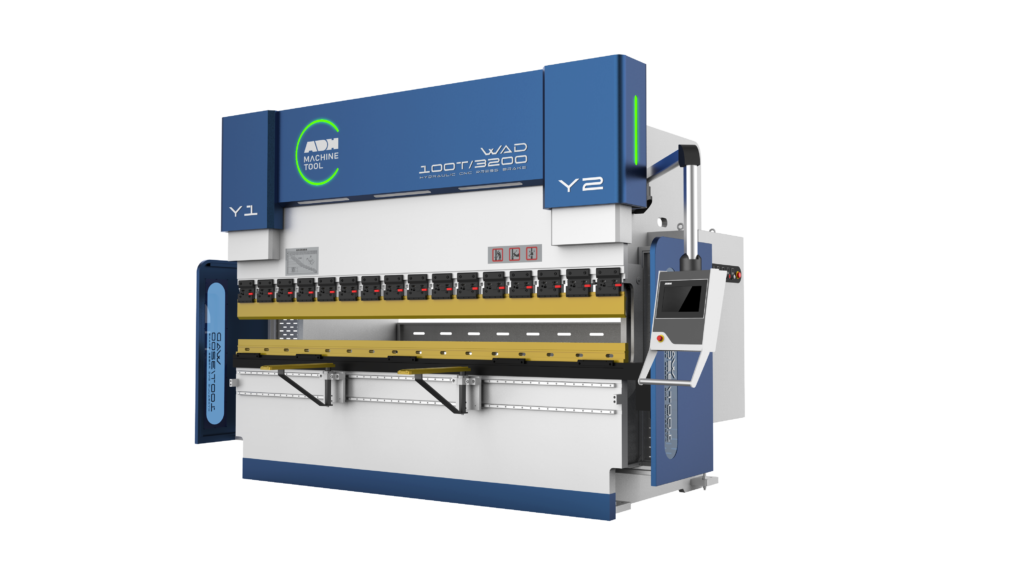

CNC Press Brake

General Features

New EU streamlined design
The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress
The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment
The frame is formed by the imported CNC three-dimensional machining center in one process, which ensures the parallelism and verticality of each mounting surface.
The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram
Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the pressure in the hydraulic system is the closed loop control of the servo main motor)
The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine
The machine oil temperature is stable, which extending the service life of various components of the hydraulic system
More technical innovations to ensure the quality of bending, and powerful, easy to operate
The press brake adopt the latest high-frequency hydraulic control technology, which is faster, more efficient and more stable
The best parameter ratio, the optimal core configuration, the performance is stable, the operation is more convenient, and the bending of various workpieces in complex shape can be realized

Stander Components

Hydraulic Valve: HAWE-Hoerbiger/Rexroth
Oil Pump: VOITH/ECKERLE
Oil Cylinder: Made in China
Main Motor: Siemens Normal Motor; Estun/Inovance/Delta Servo Motor
Grating Ruler: Fagor/GIVI
Crowning: Motorized Crowning
Pedal Switch: Roller Type
Electrics: Schneider
Clamps: Quick Clamp
Ball Screw Rod: PMI
Linear Guide: Zeen/Schneeberger
Front Support: Steel Type/Support Equiped with Dual Linear Guide/Roller Support
Backgauge Motor: Estun/Delta
Rear Finger: Big Finger
Finger Amount: 2/3/4/6
Backgauge Axis: 3+1
Front Protection: Left&Right Guard
Rear Protection: Simple Rear Guard
Controller: Delem DA53T

Optional

Main Motor: WNM

Grating Ruler: Heidenhain

Clamps: Advanced Quick Clamp/Hydraulic Clamp

Ball Screw Rod: HIWIN

Linear Guide: HIWIN

Backgauge Motor: Yaskawa

Finger Amount: Customized

Backgauge Axis: 4+1/6+1/8+1

Temperature Control Device: Heating Device / Air Cooling Device / Air Conditioner Oil Cooler

Front Protection: Custom Sheet Metal Guard/Light Curtain Protection/Laser Protection

Rear Protection: Custom Sheet Metal Guard/Light Curtain Protection

Controller: Customized

Model	Bending Force	Bending Length (A)	Approaching Speed	Ram Speed	Return Speed	Column Distance (B)	Throat Depth (D)	Stroke (C)	Open Height (E)	Step/Servo Motor	Weight	Dimensions
	KN	mm	mm/s	mm/s	mm/s	mm	mm	mm	mm	KW	Ton	LWH mm
50T/1300	500	1300	220	15.5	200	1120	300	150	460	5.5/6	4.5	180015002300
70T/1600	700	1600	220	15.5	200	1300	300	150	460	5.5/6	5.3	230016002500
70T/2500	700	2500	220	15.5	200	2050	300	150	460	5.5/6	6	310016002500
80T/2500	800	2500	220	15	185	2050	300	150	460	7.5/8.7	6.5	310016002600
110T/2500	1100	2500	220	15	195	2050	400	200	480	11/10.8	8.5	310018002600
110T/3200	1100	3200	220	15	195	2700	400	200	480	11/10.8	8.5	380018002600
110T/4000	1100	4000	220	15	195	3100	400	200	480	11/10.8	9.5	460018002600
110T/4100	1100	4100	220	15	195	3600	400	200	480	11/10.8	10	470018002700
135T/3200	1350	3200	220	12	150	2700	400	200	480	11/10.8	10	380018002700
135T/4000	1350	4000	220	12	150	3100	400	200	480	11/10.8	11	460018002700
135T/4100	1350	4100	220	12	150	3600	400	200	480	11/10.8	11	470018002700
170T/3200	1700	3200	160	12	122	2700	450	200	480	15/13.2	11.8	380020002800
170T/4000	1700	4000	160	12	122	3100	450	200	480	15/13.2	13	460020002800
170T/4100	1700	4100	160	12	122	3600	450	200	480	15/13.2	13	470020002800
220T/3200	2200	3200	160	11.5	135	2600	450	200	480	18.5/16.7	13	380022002850
220T/4000	2200	4000	160	11.5	135	3100	450	200	480	18.5/16.7	15	460022002850
250T/3200	2500	3200	100	10.5	130	2600	450	250	540	22/16.7	16.5	350020002900
250T/4000	2500	4000	100	10.5	130	3100	450	250	540	22/16.7	18.8	430021003100
250T/5000	2500	5000	100	10.5	130	3800	450	250	540	22/16.7	23	530021503150
250T/6000	2500	6000	100	10.5	130	4800	450	250	540	22/16.7	25	630021503150
300T/3200	3000	3200	80	8.5	110	2600	500	250	570	22	19.5	380022503200
300T/4000	3000	4000	80	8.5	110	3100	500	250	570	22	21	460025003400
300T/5000	3000	5000	80	8.5	110	3800	500	250	570	22	27.5	560025003400
300T/6000	3000	6000	80	8.5	110	4800	500	250	570	22	31	660025003400
400T/3200	4000	3200	80	8	80	2600	500	300	610	30	23	380027003500
400T/4000	4000	4000	80	8	80	3100	500	300	610	30	30	460027003500
400T/5000	4000	5000	80	8	80	3800	500	300	610	30	32	560027003500
400T/6000	4000	6000	80	8	80	4800	500	300	610	30	38	660027003500
500T/4000	5000	4000	80	8.5	90	3100	500	300	610	37	37	460027003500
500T/5000	5000	5000	80	8.5	90	3800	500	300	610	37	42	560027003500
500T/6000	5000	6000	80	8.5	90	4800	500	300	610	37	48	660027003600
600T/4000	6000	4000	80	8.5	85	3100	600	320	650	45	48	460033003900
600T/5000	6000	5000	80	8.5	85	3800	600	320	650	45	52	560033003900
600T/6000	6000	6000	80	8.5	85	4800	600	320	650	45	58	660033003900
600T/7000	6000	7000	80	8.5	85	5600	600	320	650	45	68	760033003900
700T/6000	7000	6000	80	8.5	85	4900	600	320	700	55	78	660035004000
800T/6000	8000	6000	80	8	90	4600	600	320	800	30*2	79	660035004000
800T/7000	8000	7000	80	8	90	5600	600	320	800	30*2		760035004200
800T/8000	8000	8000	80	8	90	6600	600	320	800	30*2		860036004500
800T/10000	8000	10000	80	8	90	7800	600	320	800	30*2		1060036004900
